2,613,000 Indicated and 483,000 Inferred Oxide Gold Ounces 52% Increase in Indicated and 31% Increase in Inferred Ounces
VANCOUVER, B.C. – Liberty Gold Corp. (TSX: LGD; OTCQX: LGDTF) (“Liberty Gold” or the “Company”) is pleased to announce an update to the independent Mineral Resource Estimate (the “Resource” or “MRE”) at its Black Pine Oxide Gold Project (“Black Pine”) in southeastern Idaho. The updated Resource builds on the maiden resource released on July 13, 2021, and includes an additional 528 Reverse Circulation (“RC”) and core holes (126,726 metres) drilled by Liberty Gold between April 2021 and October 2022.
The MRE has an effective date of January 21, 2023, is reported using a constraining resource pit at a cut-off grade (“COG”) of 0.20 grams per tonne (“g/t”) gold (“Au”) and consists of:
- An indicated resource of 2,613,000 ounces of oxide gold at an average grade of 0.52 g/t Au and totalling 157,267,000 tonnes (“t”); and
- An inferred resource of 483,000 ounces of oxide gold at an average grade of 0.43 g/t Au and totalling 35,150,000 t.
- A high-grade subset of the MRE within the 0.20 g/t Au resource pit using a COG of 0.50 g/t Au consists of:
- An indicated 1,548,000 ounces of gold at an average grade of 1.02 g/t Au and totalling 47,391,000 t; and
- An inferred 219,000 ounces of gold at an average grade of 0.93 g/t Au and totalling 7,315,000 t.
In total, using the same COG as the previous resource estimate, the updated MRE represents a 52% increase in indicated ounces and a 31% increase in inferred ounces over the maiden resource released just 18 months ago (see press release dated July 13, 2021). Within the higher-grade subset (0.50 g/t Au COG within the 0.20 g/t Au resource pit), 528,000 indicated ounces were added relative to the 2021 maiden resource estimate, a 52% increase. The significant increase in ounces can be attributed to:
- The discovery (see press release dated September 1, 2021) and subsequent intensive drilling of 154 holes included in the resource in the Rangefront Zone beginning in July 2021 over a 15 month period.
- Expansion and/or amalgamation of several existing zones, including the CDF, E, and M zones and discovery of the Bobcat Zone, a southern extension of the CDF Zone (see press released dated December 13, 2022).
- Drill testing and drill definition of surficial waste rock storage and pit backfill.
- Definition drilling in previously-defined areas of inferred mineralization.
The MRE was completed by SLR Consulting (Canada) Ltd., Toronto, Canada (“SLR”). SLR is a highly respected engineering company with extensive experience in resource estimation and audit of the largest Carlin-style gold systems in the Great Basin.
Jason Attew, President and CEO of Liberty Gold stated, “This updated Mineral Resource Estimate for our flagship Black Pine project represents a major milestone for Liberty Gold and a major accomplishment for our exploration team, who spent the last year and a half with a singular focus on expanding and upgrading the resource endowment at Black Pine. The team has delivered impressive results. Compared to the July 2021 resource estimate, tonnes are up significantly while grade has improved using conservative input assumptions, positioning Black Pine in the rarified territory of an oxide resource with more than 2.6 million indicated ounces and a further half a million ounces inferred. Moreover, we are encouraged that Black Pine continues to expand in all directions with future resource growth expected as drill results continue to impress.”
For maps and cross sections of the Black Pine Mineral Resource block model, please click here: https://libertygold.ca/images/news/2023/February/BlackPine_ResourceUpdate.pdf

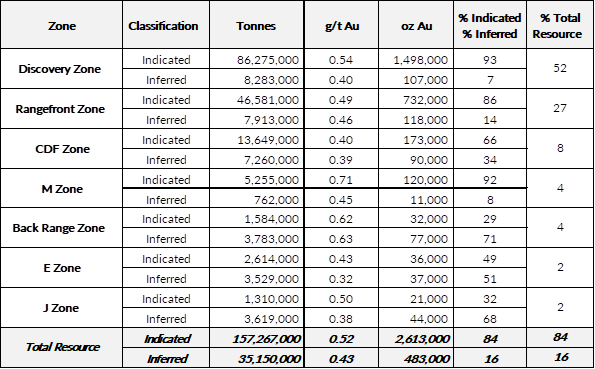

TABLE 1: BLACK PINE UPDATED MINERAL RESOURCE ESTIMATE
- CIM (2014) definitions were followed for Mineral Resources.
- Mineral Resources are estimated at a gold cut-off grade of 0.20 g/t.
- Mineral Resources are estimated using a long-term gold price of US$1,800 per ounce.
- Mineral Resources are estimated using a variable recovery derived from metallurgical studies.
- Bulk density is variable by rock type.
- There are no Mineral Reserves.
- Mineral Resources that are not Mineral Reserves do not have demonstrated economic viability.
- Mineral Resources are reported within conceptual open pits.
- Rounding as required by reporting guidelines may result in apparent discrepancies between tonnes, grades, and contained gold content.
- The effective date of the Mineral Resource estimate is January 21,
- The estimate of mineral resources may be materially affected by geology, environment, permitting, legal, title, taxation, sociopolitical, marketing, or other relevant issues.
- See additional resource estimation notes below.
- The updated MRE captures historic shallow drilling and Liberty Gold drilling through mid-October 2022 throughout the 14 square kilometer (“km2”) surface gold anomaly surrounding the historic pits and in the Rangefront area, leaving large areas of the project still untested.
- A combination of historic drilling and Liberty Gold drilling comprised of 2,398 tightly spaced drill holes and representing 362,423 m of drilling, allows for a high degree of confidence in the integrity of the MRE, as illustrated by 84.4% of the MRE in the indicated category.
- Within the 0.20 g/t Au resource pit shell, there is a subset of higher-grade mineralization exceeding 1.5 million ounces of indicated material at a grade of over 1 g/t Au (0.50 g/t Au cut-off grade).
- An analysis of geological potential at lower cut-off grades, down to the marginal cut-off grade of 0.10 g/t Au, suggests that significant upside potential exists for recovery of additional ounces in a future mine at Black Pine by applying operational cut-off grades similar to other run-of-mine oxide heap-leach operations in the Great Basin. These lower grade ounces are estimated in the block model to a high degree of confidence and have supporting metallurgical test work.
- Inferred portions of the MRE largely reflect areas of recent resource expansion drilling and will continue to be upgraded through infill drilling.
- The updated MRE is supported by four phases of metallurgical column testing, completed between 2019 and 2021. Three additional phases of metallurgical test work are currently in progress for Black Pine. Results will be released when available from February through December 2023.
- As of December 31, 2022, Liberty Gold has expended approximately US$48.7 million dollars all-in on the project, including acquisition costs, or approximately US$16 per resource ounce of gold.
“The updated MRE represents the next step in validating our hypothesis that the Black Pine gold system may be the largest oxide gold system in the Great Basin not currently being mined,” stated Moira Smith, Liberty Gold’s Corporate Technical Advisor. “Our initial concept of a gold system hosted along low-angle, bedding-parallel faults over a wide area has withstood the test of time, and we were able to test the concept in an area of shallow cover to the east of the main zone of mineralization, resulting in a major discovery at Rangefront. With over 40 holes pending assay results post-resource at this time, we are well on our way toward further resource growth. At this point, with data in hand from this resource update, both within and outside of the current resource pit, we believe that geological potential across our two Great Basin properties could extend to at least 7 million ounces.”
RESOURCE DISTRIBUTION ACROSS AND WITHIN THE BLACK PINE DEPOSIT
With reference to Table 1, above, the updated MRE reflects efforts to grow the deposit through:
- Testing of new targets: The Rangefront Zone, targeted by drilling starting in July 2021, has added over 679,000 ounces of indicated and 93,000 ounces of inferred resource to the Black Pine deposit relative to the 2021 resource estimate, and now contributes 27% to the total Resource. It is located adjacent to flat terrain suitable for future infrastructure development.
- Targeting of areas with potential to yield near-surface mineralization at higher than average grades including the M Zone and F Zone. The M Zone now hosts 120,000 indicated ounces at an average grade of 0.71 g/t Au.
- Targeting of sparsely-drilled, smaller zones with multiple small resource pits in order to amalgamate them into larger bodies of contiguous mineralization in fewer pits, including the M Zone, portions of the CDF Zone and Back Range Zone.
- Step-out drilling along the margins of existing zones, including the CDF, E and Rangefront zones.
- Drill testing of surficial mine disturbance, including waste rock storage and pit backfill, to identify and drill off areas of above cut-off grade material.
- Drill testing of new areas including the newly-defined Bobcat Zone (reported as part of the CDF Zone).
The Discovery Zone continues to host the largest contiguous body of gold mineralization at Black Pine, with the Rangefront Zone now the second largest. The Rangefront Zone is open to the west, north and east, with drilling continuing to expand its limits.
RESOURCE ESTIMATE ANALYSIS BY BLOCK GRADES
The average grade of the deposit within the limits of the 0.20 g/t Au resource pit shell reflects a wide range of block grades. At successively higher cut-off grades, a sizeable portion of the deposit remains (Table 2). At a block COG of 0.50 g/t Au, an indicated 1,548,000 ounces at an average grade of 1.02 g/t Au remain. The distribution of the above 0.50 g/t Au COG blocks is shown in the graphics provided at the link above.
TABLE 2: RESOURCE GRADE DISTRIBUTION AT SUCCESSIVELY HIGHER CUT-OFF GRADES WITHIN THE 0.2 G/T AU REPORTING PIT*
*Please refer to the notes accompanying Table 1, above, for additional information.
The Black Pine updated MRE is shown in bold and italic font.
Potential upside was examined by evaluating the block model down to successively lower cut-off grades with corresponding constraining resource pits, approaching the marginal COG.
Considerable upside remains for resource expansion at lower COGs, to be investigated in the course of carrying out future engineering studies.

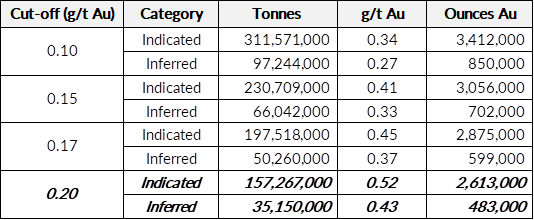

TABLE 3: SENSITIVITY ANALYSIS USING LOWER CUT-OFF GRADES*
*Please refer to notes accompanying Table 1, above. The reporting MRE is shown in
bold and italic font. Tonnes, grade and ounces are expressed within a series of nested
pit shells generated at USD$1800/ounce gold whereby only the material above each
cut-off grade is processed.
In addition to the above, the block model contains a large number of unclassified blocks lying outside of the limits of the 0.10 g/t Au pit shell. It is unknown if further drilling will result in classification of these blocks as resource. However, the presence of gold mineralization beyond the pit limits suggests the potential for future additions of gold to the current MRE.
Non-oxide gold mineralization, primarily in the form of carbonaceous material with very low cyanide solubility, is present at the base of the deposit in several locations, as well as sporadically elsewhere in the stratigraphic column. This material was assigned a zero recovery in the conceptual pit model, such that it is excluded from the pits, and, if internal to the pits, is not included in the MRE. Very high grades were encountered locally in this material. It is not known whether some or all of this material is recoverable using other methods without further metallurgical studies.
2023 Work Program
Much of the gold system at Black Pine remains unexplored or incompletely tested, including areas along the southeastern, eastern and northeastern edge of the deposit, as well as the gap between the Back Range and E zones.
A recently submitted modification to the United States Forest Service (“USFS”) Plan of Operations, as well as a recently received Bureau of Land Management Plan of Operations will allow access to much of this area beginning in 2023.
The 2023 drill program commenced on January 7, 2023, in low elevation areas along the eastern margin of the deposit. The budget includes 32,000 m of RC drilling targeting resource upgrade and expansion over several areas of the deposit, as well as reconnaissance drilling in new areas along the eastern margin of the deposit.
In parallel with the drill program, development work is continuing, comprising:
- Phase 5 metallurgical column test work (55 columns)
- Submission of an additional modification to the USFS Plan of Operations
- Geotechnical and hydrological studies
- Waste rock geochemical studies
- Environmental baseline work.
ABOUT BLACK PINE
Black Pine is located in the northern Great Basin, immediately adjacent to the Utah/Idaho border. It is a Carlin-style gold system, similar in many ways to the prolific deposits located along Nevada’s Carlin trend. Like Nevada Gold Mine’s Long Canyon deposit, Black Pine represents a growing number of Carlin-style gold systems located off the main Carlin and Cortez trends in underexplored parts of the Great Basin. The historic Black Pine Mine operated from 1992 to 1997, during a period of historically low gold prices, with 435,000 ounces of gold produced from five composite, shallow pits, at an average grade of 0.63 g/t Au.
Gold mineralization at Black Pine is hosted in a 100 to 500 m-thick package of receptive, faulted carbonate rocks of the Pennsylvanian Oquirrh Formation. The rocks show evidence of extensive decalcification and clay alteration typical of Carlin-style gold deposits and are strongly oxidized over the entire extent of the 14 km2, exposed portion of the gold system.
Metallurgical column test results received to date indicate rapid gold recoveries, relatively insensitive to crush size, which support a simple, low-cost heap-leach process.
A virtual site tour and 3D model of Black Pine property, including details about the geology and mineralization, will be available in due course on the Company’s website: libertygold.ca.
The resource estimate was completed by Ryan Rodney, C.P.G., Senior Resource Geologist, of SLR. Mr. Rodney is an Independent Qualified Person as defined by National Instrument 43-101 Standards of Disclosure for Mineral Projects (“NI 43-101”). The resource estimate was prepared in accordance with the Canadian Institute of Mining, Metallurgy and Petroleum (“CIM”) Standards on Mineral Resources and Mineral Reserves, adopted by the CIM Council, as amended. Estimation methods are summarized below.
- The gold mineral resources at the Black Pine Project were modeled and estimated by:
- Developing a geological model, in Leapfrog Geo reflecting low-angle fault control and stratigraphic control of mineralization hosted in receptive carbonate host rocks;
- evaluating the drill data statistically;
- interpreting low (0.1 g/t Au) and high-grade (0.3 g/t Au for Rangefront and 0.5 g/t Au for all other areas) gold-domains using Leapfrog Edge;
- compositing data to 3.048 metres (10 feet) within the gold domains;
- coding a block model comprised of 10 x 10 x 5 (x, y, z) metre blocks and sub-blocked to 2.5 x 2.5 x 1.25 metre blocks to the domains;
- analyzing the modeled mineralization geostatistically to aid in the establishment of estimation and classification parameters;
- interpolating gold grades using inverse distance cubed (ID3) and a three pass interpolation strategy into the model blocks using the mineral domain coding to explicitly constrain the gold grade estimations; and
- evaluating, statistically and visually, the resulting model in detail prior to finalizing the mineral resource estimation.
- The Black Pine Deposit mineral resource has been constrained by optimized pit shells created using a gold price of US$1,800/ounce and pit slopes ranging from 45 to 47 degrees in eight sectors defined by geotechnical studies. Additional inputs for the pit-optimizations include: Mining - $2.35/tonne mined, heap leaching - $2.00/tonne processed; and G&A cost of $0.80/tonne processed at an assumed 10 million tonnes per year processing rate. Gold recoveries are based on equations derived from metallurgical data and vary by grade and rock unit. A 0.5% net smelter return royalty was also applied.
- The drilling database for the project contains 1,854 historical RC holes and 23 diamond core holes, as well as 768 RC and 30 core holes drilled by Liberty Gold. The historical holes at the Black Pine Project were primarily drilled from the mid 1980s to the late 1990s by Noranda and Pegasus Gold.
- A technical report on the updated resource estimate will be prepared in accordance with NI 43-101 and filed within 45 days of this news release on Liberty Gold’s issuer profile on SEDAR at sedar.com
The technical information contained in this news release has been reviewed and approved by Mr. Ryan Rodney, C.P.G. of SLR, an Independent Qualified Person as defined by NI 43-101. Mr. Rodney has verified the data disclosed, including sampling, analytical, and test data underlying the drill results, and he consents to the inclusion in this release of said data in the form and context in which it appears. Mr. Rodney experienced no limitations with respect to data verification activities related to the Black Pine project.
Moira Smith, Ph.D., P.Geo., Corporate Technical Advisor to Liberty Gold, is the Company's designated Qualified Person for this news release within the meaning of NI 43-101 and has reviewed and validated that the information contained in the release is accurate.
 Included in the Updated Technical Report and Resource Estimate for the Black Pine Gold Project, Cassia County, Idaho, USA dated August 18, 2021 with an effective date of June 20, 2021.
