Liberty Gold Reports Weighted Average 79% Extraction in Bulk Sample Column Testing at Black Pine Project, Great Basin, USA
High and Rapid Recoveries Relatively Insensitive to Crush Size Support Simple Heap Leach Processing
VANCOUVER, B.C. – Liberty Gold Corp. (LGD-TSX) (“Liberty Gold” or the “Company”) is pleased to report results from Bulk Sample metallurgical testing on oxide material from its Black Pine Project in southeastern Idaho, providing support for a simple heap leach mining scenario. Gold extractions from six, 300 kilogram (“kg”), large-diameter column tests were rapid, and >80% of the leachable gold was extracted within 10 days, with final column leach gold extractions ranging up to 92.8%.
Metallurgical test work included fine and coarse bottle rolls and column tests using material ranging up to 3 inch particle size. In total, 12 bottle rolls (six coarse mesh and six fine mesh) and six column tests were carried out on six bulk samples obtained from backhoe trenching of bedrock exposed on ramps in five historic pits and one drill target at Black Pine.
Results from the metallurgical test work demonstrate that oxide material from Black Pine responds well to column testing and will contribute to low capital and operating costs in the future. The test work undertaken on the project has significantly mitigated the metallurgical risk related to the known mineralization.
The work was supervised by independent consulting metallurgist Gary Simmons, formerly the Director of Metallurgy and Technology for Newmont Mining Corp. Mr. Simmons has managed or supervised a significant number of metallurgical testing programs on similar deposits throughout the Great Basin. According to Mr. Simmons, “Data from metallurgical testing to date at Black Pine point to rapid leaching and relatively high gold extractions and suggest that a combination Run of Mine and coarse crush/agglomeration heap leaching may be the preferred process option at Black Pine.”
- Six column leach tests produced a weighted average* 78.9% gold extraction. With a range up to 92.8% gold extraction. See below for a table of results or click here: https://libertygold.ca/images/news/2020/June/Gold_Extraction_Data.pdf
- Gold extraction was rapid, with >80% of the leachable gold extracted within the first 10 days of column leaching. See below for a graph of extraction curves or click here: https://libertygold.ca/images/news/2020/June/Cumulative_Leach_Curves.pdf
- Six coarse bottle roll tests (target of 80% passing 10 mesh or 1.7mm particle size) produced a weighted average 79.1% gold extraction.
- Six fine bottle roll tests (target of 80% passing 200 mesh or 75 micron particle size) produced a weighted average 81.8% gold extraction.
- Gold extraction is relatively insensitive to particle size, with the exception of one sample from the southernmost “I” pit. All other composites can be projected to coarse particle sizes approximating run of mine conditions without significant loss of gold extraction.
- Results generated by this program are comparable to historical column test results generated by Noranda in 1988 from oxide material obtained prior to mining.
*Weighted average gold extraction is obtained using the following equation: (composite head grade (grams/tonnes) multiplied by extraction (%) for all head grades)/sum of all head grades. Using arithmetic averages tends to over-represent low grade composites and under-represent high grade composites. The arithmetic average of the six column tests is 78.0%.
“We are extremely pleased with the metallurgical results from our bulk sample column testing program at Black Pine. This is a key 2020 deliverable for our Company,” said Cal Everett, Liberty Gold President & CEO. “We believe that by integrating our detailed understanding of grade distribution and rock type into a heap leach plan, we will be able to achieve these types of recoveries in a new operation. Results from our drill core variability composite column testing program are anticipated in the near future.”
Table 1: Column Test and Bottle Roll Results, Liberty Gold Bulk Samples and Historical Data
|Coarse Bottle Roll||Fine Bottle Roll||Column Test|
|Feed Target P80 1,700µm*||Feed Target P80 75µm*|
|KCA Sample No.||Type||Deposit Area||Actual P80 (µm)||Calculated Head Grade (ppm Au)||Direct Leach Gold Extracted (%)||Actual P80 (µm)||Calculated Head Grade (ppm Au)||Direct Leach Gold Extracted (%)||Carbon in Leach Gold Extracted (%)||Actual Feed P80 (mm)||Calculated Head Grade (ppm Au)||Gold Extracted (%)|
|Liberty Gold 2019 Bulk Samples|
|87201B||Bulk Sample||A Pit||1,960||1.17||74.6||97||1.08||76.0||79.6||58.6||1.16||79.8|
|87202B||Bulk Sample||Tallman Pit||1,640||2.25||79.5||88||2.15||78.9||86.0||74.4||2.00||79.7|
|87203B||Bulk Sample||B Extension Pit||1,520||3.74||90.1||104||3.73||91.3||93.3||55.9||3.38||92.8|
|87204B||Bulk Sample||F Zone Target||1,480||0.78||79.3||102||0.79||80.7||82.5||51.3||0.80||78.2|
|87205B||Bulk Sample||CD Pit||1,580||0.25||64.5||114||0.22||64.6||76.6||71.9||0.23||76.8|
|87206B||Bulk Sample||I Pit||1,740||2.66||66.7||107||2.67||74.8||79.3||56.1||2.68||60.9|
|Noranda 1988 Bulk Samples & Core Samples||Target P80 (µm)|
|8593||Bulk Sample||Tallman Pit||N/A||N/A||N/A||75||4.594||83.6||N/A||53.4||4.18||80.3|
|8593||Bulk Sample||Tallman Pit||20.9||4.56||82.0|
|8594||Bulk Sample||B Pit||N/A||N/A||N/A||75||10.886||86.6||N/A||58.8||10.08||86.4|
|8594||Bulk Sample||B Pit||22.7||10.35||87.7|
|8648||Bulk Sample||B Pit||N/A||N/A||N/A||75||1.183||78.3||N/A||67.7||1.17||67.6|
|8648||Bulk Sample||B Pit||22.9||1.10||75.0|
|8814||Core BP-87-58C||B Pit||N/A||N/A||N/A||75||1.68||85.7||N/A||32.3||1.75||82.4|
|8814||Core BP-87-58C||B Pit||10.8||1.68||87.8|
|8840||Core BP-87-73C||B Pit||N/A||N/A||N/A||75||4.663||87.5||N/A||31.6||4.73||71.0|
|8840||Core BP-87-73C||B Pit||9.8||4.70||75.9|
|9208||Core BP-87-6/7||Tallman Pit||N/A||N/A||N/A||75||2.006||88.9||N/A||26.6||2.02||84.7|
|9208||Core BP-87-6/7||Tallman Pit||8.6||2.02||91.5|
|9210||Core BP-87-93C||A Pit||N/A||N/A||N/A||75||1.577||78.3||N/A||31.6||1.54||75.6|
|9210||Core BP-87-93C||A Pit||10.1||1.41||73.2|
|9210||Core BP-87-93C||A Pit||10.1||1.54||77.8|
|9211||Core BP-87-102C||A Pit||N/A||N/A||N/A||75||1.097||50.0**||N/A||32.7||1.03||50.0**|
|9211||Core BP-87-102C||A Pit||9.4||1.03||53.3**|
|*Target P80 is achieved when 80% of the feed passes through a mesh with the given opening size. Actual laboratory conditions may vary, and the actual feed size is shown in the table.
**The low gold extraction in this Noranda sample is believed to be due to the presence of organic carbon.

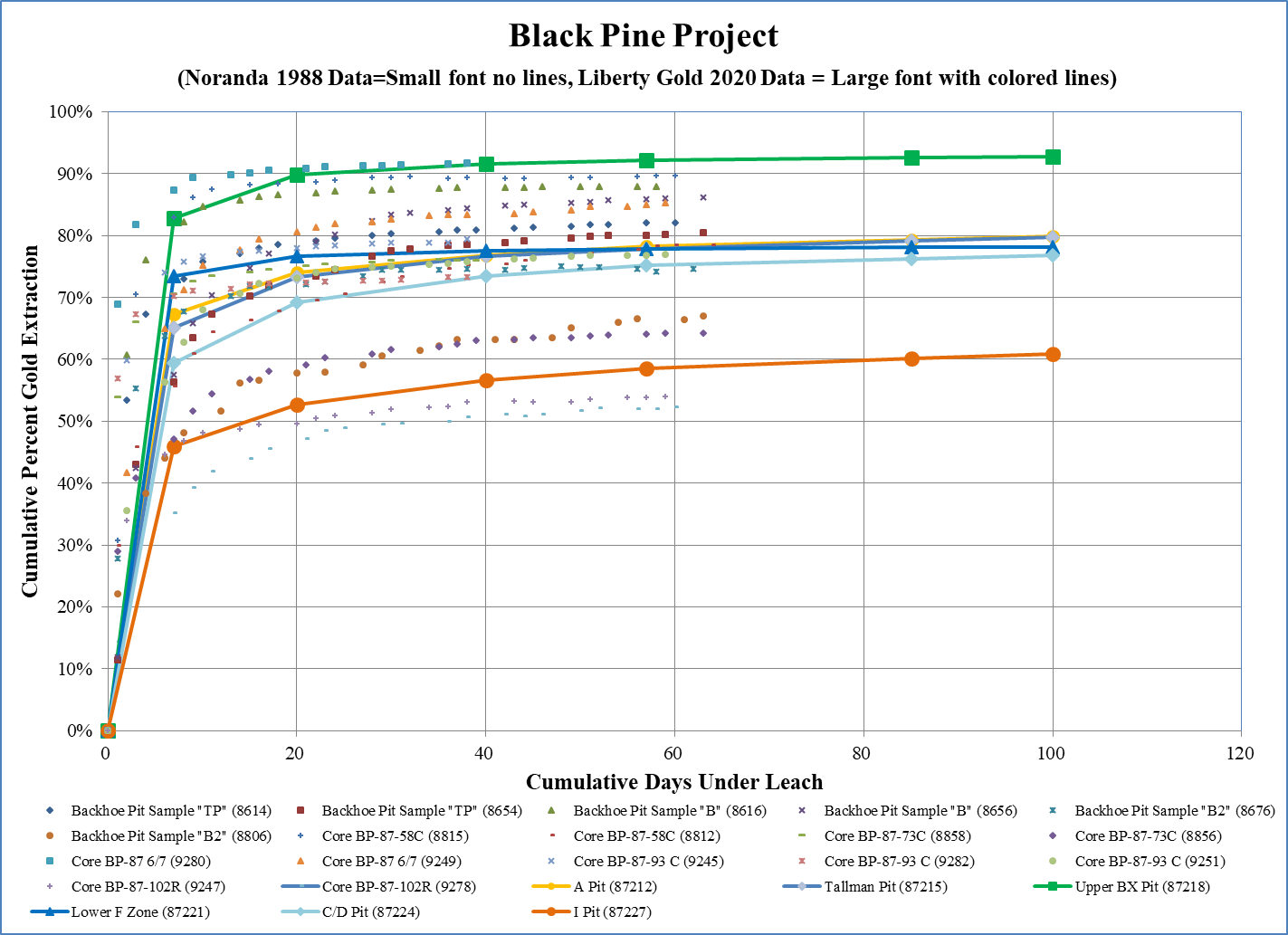

Figure 1: Cumulative Leach Curves, Liberty Gold Bulk Samples and Historical Data
In addition to the recently-complete bulk sample testing by Liberty Gold, the project benefits from metallurgical data generated in 1988 by Noranda Mining. Similar laboratory and processing methods were used, allowing for a direct comparison with the Liberty Gold program. Noranda used eight samples derived from three bulk samples and five composites from drill core were used for the study. The weighted average for Noranda fine bottle rolls was 84.1%, although this result was skewed by one 10.9 gram per tonne gold (“g/t Au”) sample. The arithmetic mean was 79.9%. The weighted average of 17 column tests at various feed sizes was 80.8%, similar to the results generated by the Liberty Gold program.
Samples for this study were obtained through backhoe trenching of bedrock exposed on ramps in the five historic pit complexes at Black Pine, with one sample obtained from a drill road near the historic CD pit.

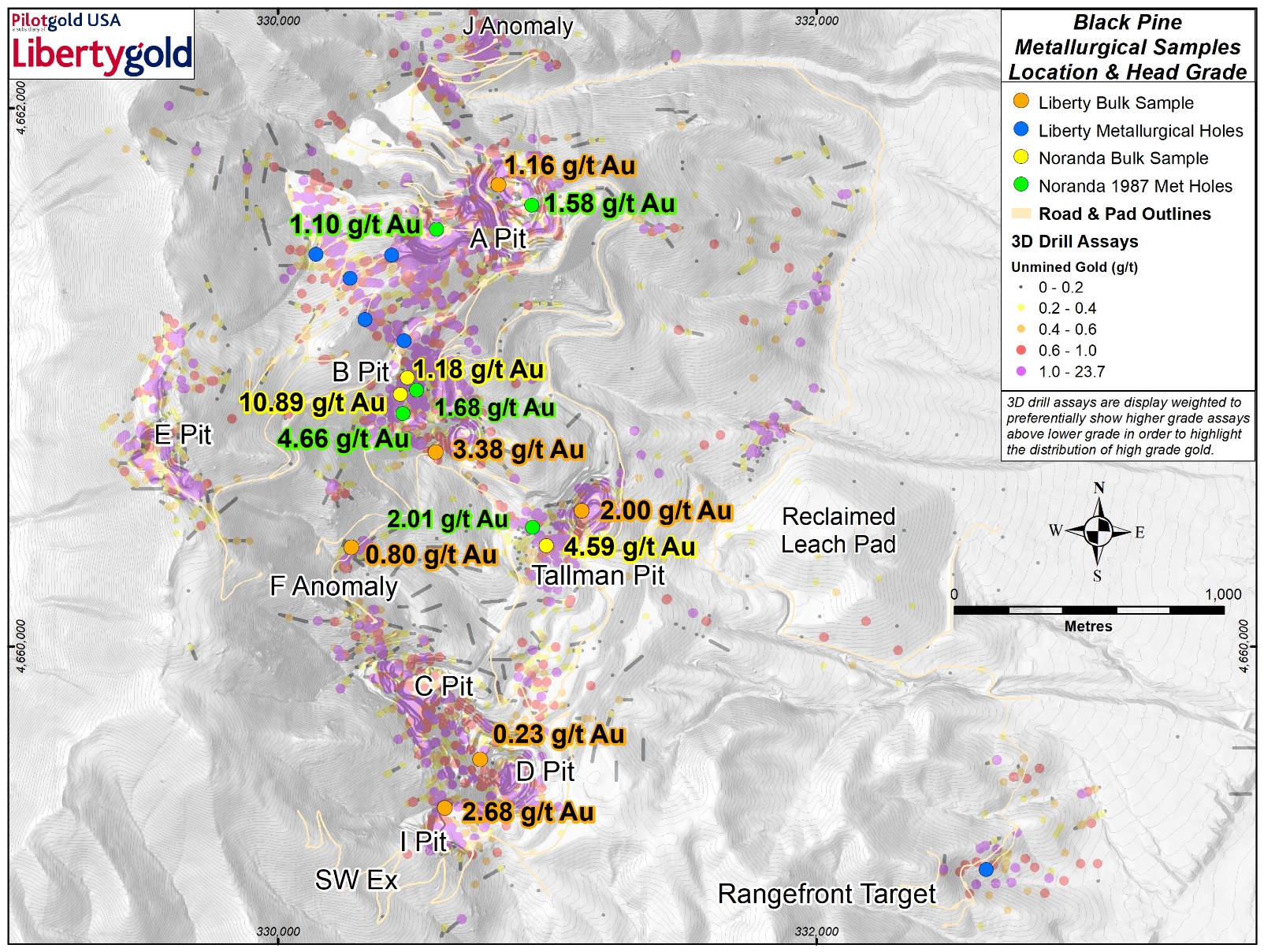

For a map showing locations of drill holes used for metallurgical testing, please click here:
1000 kilogram bulk samples were sent to Kappes, Cassiday and Associates in Reno, Nevada for metallurgical testing, comprising bottle rolls, column testing and metallurgical characterization, including gold and silver assays, cyanide solubility, sulphur and carbon speciation, preg-rob analysis, ICP geochemical assays and whole rock analysis.
The Liberty Gold bulk samples were leached for 100 days in 300 mm (12 inch) diameter columns at low strength, 0.50 grams per litre of sodium cyanide (“NaCN”) solution. The A pit, BX Pit and Lower F Zone pit samples were agglomerated with up to 2.0 kg per tonne of cement due to elevated clay content. (Leaching time for the Noranda samples was up to 65 days, and two of the samples were agglomerated.)
Samples for bottle roll testing were milled/crushed respectively to 80% passing 200 mesh (75 microns) and 80% passing 10 mesh (1.7 mm) particle size. The samples were rolled/agitated in bottles in a 1.0 grams per litre dilute cyanide solution for 72 hours (for 200 mesh) or 144 hours (for 10 mesh).
Liberty Gold bulk samples exhibited a range of extraction values, up to 92.8%, with rapid extraction in the first ten days of leaching. The range in values and variability is consistent with that obtained by Noranda in a larger program in 1988. The samples are now undergoing detailed mineralogical and gold deportment study to determine how the gold and gangue minerals are distributed in the rock, with particular attention to the I pit sample with reduced gold extraction at higher particle sizes.
